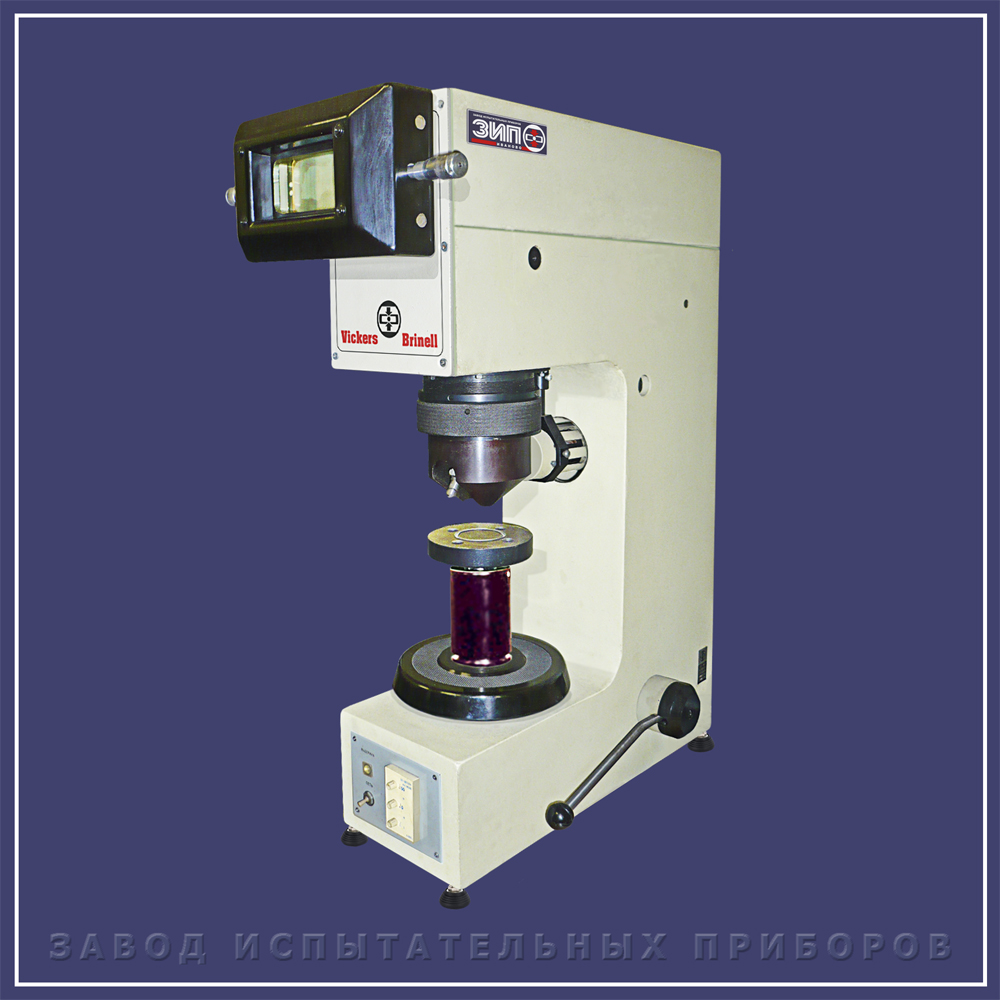

IT 5010, IT 5010-01M
Vickers and Brinell hardness testers
The devices are designed to measure the hardness of metals and alloys according to the methods of Vickers and Brinell.
Device IT 5010 — without electronic counting system. DeviceIT 5010-01M — with electronic counting system.
Electronic counting system allows you to produce:
- sorting of products into hardness groups: LESS, NORMAL, MORE;
- mathematical processing of measurement results;
- finding the largest and smallest values in a series;
- determination of the average value in a series;
- determination of the range of readings.
The digital display serves for reading the measurement results and visual observation of the input of the necessary data. The device has a computer output and print.
Type Approval Certificate SI ROSSTANDARD OF RUSSIA No. 44530.
| TECHNICAL SPECIFICATIONS | |
| Hardness measurement ranges | |
| according to the Vickers method, HV | 8...2000 |
| according to the Brinell method, HB | 5,6...450 |
| Test loads, N (kgf) | 49,03; 98,07; 153,2; 196,1; 245,2; 294,2; 490,3; 612,9; 980,7; 1226; 1839; 2452 (5; 10; 15,6; 20; 25; 30; 50; 62,5; 100; 125; 187,5; 250) |
| Limits of permissible error of the test loads of the device, % | ±1 |
| The exposure time of the samples under load, s | 1...180 |
| increase | |
| optical system | 120 X |
| the microscope | 25 X; 50 X |
| Graduation, mm | |
| embedded optical measuring device | 0,1 |
| nonius | 0,01 |
| micrometer screw | 0,001 |
| portable microscope | 0,02 and 0,04 |
| Maximum height of working space without protective glasses, mm | 150 |
| The distance from the axis of the test tip to the body, mm | 150 |
| The number of digits of the digital panel of the IT 5010-01M device | 4 |
| Maximum power, W (power) | |
| IT 5010 | 60 (220V, 50 Hz) |
| IT 5010-01М | 90 (220V, 50 Hz) |
| Overall dimensions, mm | 635x335x810 |
| Weight, kg | |
| IT 5010 | 140 |
| IT 5010-01М | 138 |
